Fermi-LAT ANALYSIS
[1]:
from vtspy import *
WARNING: version mismatch between CFITSIO header (v4.000999999999999) and linked library (v4.01).
WARNING: version mismatch between CFITSIO header (v4.000999999999999) and linked library (v4.01).
WARNING: version mismatch between CFITSIO header (v4.000999999999999) and linked library (v4.01).
Step 1. Generate a configuration file for Fermipy
[2]:
ls ./veritas
95127.anasum.fits 95130.anasum.fits initial.pickle
95128.anasum.fits analyzed.pickle obs-index.fits.gz
95129.anasum.fits hdu-index.fits.gz simple.pickle
[3]:
config = JointConfig(files="./veritas/")
2022-06-23 13:53:05 INFO : -------------------- Info --------------------
2022-06-23 13:53:05 INFO : target: 1ES1218+304
2022-06-23 13:53:05 INFO : localization:
2022-06-23 13:53:05 INFO : (ra, dec) : (185.3412470056114, 30.17694222440679)
2022-06-23 13:53:05 INFO : (glat, glon) : (82.73442268671826, 186.3593855387067)
2022-06-23 13:53:06 INFO : time interval:
2022-06-23 13:53:06 INFO : veritas : 2020-01-01T11:15:10.479 - 2020-01-01T13:15:02.043
2022-06-23 13:53:06 INFO : fermi : 2020-01-01 00:00:00.000 - 2020-01-02 00:00:00.000
2022-06-23 13:53:06 INFO : ---------------------------------------------
2022-06-23 13:53:06 INFO : a configuration file (config.yaml) is created.
[4]:
config.print_config()
2022-06-23 13:53:06 INFO :
fermi:
binning:
binsperdec: 8
binsz: 0.08
coordsys: CEL
projtype: WCS
roiwidth: 12
data:
evfile: ./fermi/EV00.lst
ltcube: null
scfile: ./fermi/SC00.fits
fileio:
logfile: ./fermi/log/fermipy.log
outdir: ./fermi/
usescratch: false
gtlike:
edisp: true
edisp_disable:
- isodiff
- galdiff
irfs: P8R3_SOURCE_V3
model:
catalogs: /Users/dtak/Research/scripts/vts-fermi/vtspy/refdata/gll_psc_v22.fit
galdiff: $FERMI_DIFFUSE_DIR/gll_iem_v07.fits
isodiff: $FERMI_DIFFUSE_DIR/iso_P8R3_SOURCE_V3_v1.txt
src_roiwidth: 15
selection:
dec: 30.17694222440679
emax: 300000
emin: 100
evclass: 128
evtype: 3
glat: 82.73442268671826
glon: 186.3593855387067
ra: 185.3412470056114
target: 1ES1218+304
tmax: 599616005.0
tmin: 599529605.0
zmax: 90
veritas:
background:
distance: 1.75
file: /Users/dtak/Research/scripts/vts-fermi/vtspy/refdata/Hipparcos_MAG8_1997.dat
magnitude: 7
simbad: true
cuts:
bias_cut: 0
eff_cut: 0
th2cut: 0.008
data:
anasum: ./veritas
fileio:
outdir: ./veritas/
selection:
dec: 30.17694222440679
emax: 10
emin: 0.1
exc_on_region_radius: 0.7
exc_radius: 0.25
format: mjd
glat: 82.73442268671826
glon: 186.3593855387067
max_region_number: 6
nbin: 6
ra: 185.3412470056114
radius: 2.0
target: 1ES1218+304
tmax: 58849.552106979165
tmin: 58849.46887128472
Step 2. Download Fermi-LAT data
[5]:
dwn = DownloadFermiData(verbosity=1)
2022-06-23 13:53:06 INFO : Query parameters:
2022-06-23 13:53:06 INFO : coordfield = 185.3412470056114,30.17694222440679
2022-06-23 13:53:06 INFO : coordsystem = J2000
2022-06-23 13:53:06 INFO : shapefield = 15
2022-06-23 13:53:06 INFO : timefield = 599529605.0,599616005.0
2022-06-23 13:53:06 INFO : timetype = MET
2022-06-23 13:53:06 INFO : energyfield = 100,300000
2022-06-23 13:53:06 INFO : photonOrExtendedOrNone = Photon
2022-06-23 13:53:06 INFO : destination = query
2022-06-23 13:53:06 INFO : spacecraft = checked
2022-06-23 13:53:38 INFO : The estimated time is about 8 seconds.
2022-06-23 13:53:44 INFO : Downloading... https://fermi.gsfc.nasa.gov/FTP/fermi/data/lat/queries/L220623075339F357373F12_PH00.fits
2022-06-23 13:53:45 INFO : Downloading... https://fermi.gsfc.nasa.gov/FTP/fermi/data/lat/queries/L220623075339F357373F12_SC00.fits
2022-06-23 13:53:47 INFO : Downloading the Fermi-LAT data has been completed.
Step 3. Analyze the Ferrmi-LAT data
Initiate fermipy
[6]:
fermi = FermiAnalysis()
2022-06-23 13:53:47 INFO : Initialize the Fermi-LAT analysis.
2022-06-23 13:53:52 INFO : Initial setup and configuration are not found. Performing the data reduction...
/Users/dtak/Software/miniconda3/envs/fermipy/lib/python3.9/site-packages/fermipy/irfs.py:51: FutureWarning: Using a non-tuple sequence for multidimensional indexing is deprecated; use `arr[tuple(seq)]` instead of `arr[seq]`. In the future this will be interpreted as an array index, `arr[np.array(seq)]`, which will result either in an error or a different result.
log_ratio = np.log(x[xs1] / x[xs0])
/Users/dtak/Software/miniconda3/envs/fermipy/lib/python3.9/site-packages/fermipy/irfs.py:52: FutureWarning: Using a non-tuple sequence for multidimensional indexing is deprecated; use `arr[tuple(seq)]` instead of `arr[seq]`. In the future this will be interpreted as an array index, `arr[np.array(seq)]`, which will result either in an error or a different result.
return 0.5 * (y[ys0] * x[xs0] + y[ys1] * x[xs1]) * log_ratio
WARNING: FITSFixedWarning: RADECSYS= 'FK5 '
the RADECSYS keyword is deprecated, use RADESYSa. [astropy.wcs.wcs]
2022-06-23 13:54:42 WARNING : FITSFixedWarning: RADECSYS= 'FK5 '
the RADECSYS keyword is deprecated, use RADESYSa.
WARNING: FITSFixedWarning: 'datfix' made the change 'Set DATEREF to '2001-01-01T00:01:04.184' from MJDREF.
Set MJD-OBS to 58849.000000 from DATE-OBS.
Set MJD-END to 58850.000000 from DATE-END'. [astropy.wcs.wcs]
2022-06-23 13:54:42 WARNING : FITSFixedWarning: 'datfix' made the change 'Set DATEREF to '2001-01-01T00:01:04.184' from MJDREF.
Set MJD-OBS to 58849.000000 from DATE-OBS.
Set MJD-END to 58850.000000 from DATE-END'.
WARNING: Format %s cannot be mapped to the accepted TDISPn keyword values. Format will not be moved into TDISPn keyword. [astropy.io.fits.column]
2022-06-23 14:30:16 WARNING : Format %s cannot be mapped to the accepted TDISPn keyword values. Format will not be moved into TDISPn keyword.
WARNING: Format %f cannot be mapped to the accepted TDISPn keyword values. Format will not be moved into TDISPn keyword. [astropy.io.fits.column]
2022-06-23 14:30:16 WARNING : Format %f cannot be mapped to the accepted TDISPn keyword values. Format will not be moved into TDISPn keyword.
WARNING: Format %s cannot be mapped to the accepted TDISPn keyword values. Format will not be moved into TDISPn keyword. [astropy.io.fits.column]
2022-06-23 14:30:16 WARNING : Format %s cannot be mapped to the accepted TDISPn keyword values. Format will not be moved into TDISPn keyword.
2022-06-23 14:30:28 INFO : The initial setup and configuration is saved [state_file = initial].
2022-06-23 14:30:28 INFO : The target, 4FGL J1221.3+3010, is associated with 2 source(s).
2022-06-23 14:30:28 INFO : Completed (Fermi-LAT initialization).
[7]:
fermi.print_model()
2022-06-23 14:30:28 ERROR GTAnalysis.print_model():
sourcename offset norm eflux index ts npred free
--------------------------------------------------------------------------------
4FGL J1221.3+3010 0.000 13.620 0.000984 1.20 45.02 5.6
4FGL J1217.9+3007 0.753 1.094 8.88e-05 1.97 7.21 7.2
4FGL J1225.9+2951 1.038 0.870 5.21e-06 2.35 nan 0.5
4FGL J1221.5+2814 1.930 0.489 3.63e-05 2.16 3.89 4.5
4FGL J1231.7+2847 2.641 1.371 2.79e-05 1.99 11.19 2.4
4FGL J1208.1+3017 2.871 0.414 1.18e-06 1.79 nan 0.1
4FGL J1220.1+3432 4.378 1.647 3.92e-06 2.07 nan 0.4
4FGL J1205.8+3321 4.589 0.684 1.45e-06 2.68 nan 0.3
4FGL J1159.5+2914 4.832 0.061 5.95e-06 2.42 0.12 0.8
4FGL J1215.1+3513 5.219 0.575 1.41e-06 2.64 nan 0.3
4FGL J1230.2+2517 5.249 0.519 1.87e-05 2.16 1.86 1.9
4FGL J1224.4+2436 5.595 2.470 1.25e-05 1.89 nan 0.6
4FGL J1212.2+2442 5.821 0.515 1.44e-06 2.11 nan 0.1
4FGL J1241.5+3439 6.187 1.080 1.21e-06 1.92 nan 0.1
4FGL J1250.8+3117 6.438 0.751 1.7e-06 2.16 nan 0.1
4FGL J1152.1+2837 6.554 0.562 1.18e-06 1.88 nan 0.0
4FGL J1219.0+3653 6.738 0.850 1.15e-06 2.23 nan 0.0
4FGL J1152.8+3308 6.758 0.386 1.79e-06 2.94 nan 0.2
4FGL J1253.8+2929 7.077 0.601 1.07e-06 1.83 nan 0.0
4FGL J1230.9+3711 7.296 1.045 1.01e-06 2.45 nan 0.0
4FGL J1212.0+2242 7.744 2.844 1.41e-06 2.04 nan 0.0
4FGL J1243.2+3627 7.771 0.754 1.88e-05 1.74 nan 0.2
4FGL J1148.5+2629 8.096 0.444 1.89e-06 2.94 nan 0.1
4FGL J1149.4+2441 8.946 0.715 1.4e-06 1.92 nan 0.0
4FGL J1150.4+2418 9.039 1.430 1.1e-05 2.21 nan 0.2
4FGL J1249.8+3707 9.135 2.558 3.88e-06 1.77 nan 0.0
4FGL J1257.2+3646 9.968 1.868 4.44e-06 2.05 nan 0.0
isodiff --- 1.443 0.073 2.24 89.23 44.8
galdiff --- 0.100 0.0267 0.00 0.03 2.2
Check whether the target is in the list
[8]:
fermi.print_association()
2022-06-23 14:30:28 INFO : 0) 4FGL J1221.3+3010:['PG 1218+304', '1ES 1218+304']
2022-06-23 14:30:28 INFO : 1) 4FGL J1217.9+3007:['B2 1215+30', '1ES 1215+303']
2022-06-23 14:30:28 INFO : 2) 4FGL J1225.9+2951:[]
2022-06-23 14:30:28 INFO : 3) 4FGL J1221.5+2814:['W Comae']
2022-06-23 14:30:28 INFO : 4) 4FGL J1231.7+2847:['B2 1229+29']
2022-06-23 14:30:28 INFO : 5) 4FGL J1208.1+3017:['GB6 J1208+3015']
2022-06-23 14:30:28 INFO : 6) 4FGL J1220.1+3432:['GB2 1217+348']
2022-06-23 14:30:28 INFO : 7) 4FGL J1205.8+3321:['SDSS J120542.82+332146.9']
2022-06-23 14:30:28 INFO : 8) 4FGL J1159.5+2914:['Ton 599', '3EG J1200+2847', 'TON 0599']
2022-06-23 14:30:28 INFO : 9) 4FGL J1215.1+3513:['7C 1212+3524']
2022-06-23 14:30:28 INFO : 10) 4FGL J1230.2+2517:['ON 246', 'S3 1227+25']
2022-06-23 14:30:28 INFO : 11) 4FGL J1224.4+2436:['MS 1221.8+2452']
2022-06-23 14:30:28 INFO : 12) 4FGL J1212.2+2442:['NVSS J121219+244130']
2022-06-23 14:30:28 INFO : 13) 4FGL J1241.5+3439:['RX J1241.6+3440']
2022-06-23 14:30:28 INFO : 14) 4FGL J1250.8+3117:['NVSS J125051+311706']
2022-06-23 14:30:28 INFO : 15) 4FGL J1152.1+2837:['GB6 J1152+2837']
2022-06-23 14:30:28 INFO : 16) 4FGL J1219.0+3653:['NVSS J121915+365718']
2022-06-23 14:30:28 INFO : 17) 4FGL J1152.8+3308:['B2 1150+33A']
2022-06-23 14:30:28 INFO : 18) 4FGL J1253.8+2929:['FIRST J125405.0+292708']
2022-06-23 14:30:28 INFO : 19) 4FGL J1230.9+3711:['WISE J123124.08+371102.2']
2022-06-23 14:30:28 INFO : 20) 4FGL J1212.0+2242:['RX J1211.9+2242', '3EG J1212+2304']
2022-06-23 14:30:28 INFO : 21) 4FGL J1243.2+3627:['Ton 116']
2022-06-23 14:30:28 INFO : 22) 4FGL J1148.5+2629:['TXS 1145+268']
2022-06-23 14:30:28 INFO : 23) 4FGL J1149.4+2441:['RX J1149.5+2439']
2022-06-23 14:30:28 INFO : 24) 4FGL J1150.4+2418:['OM 280']
2022-06-23 14:30:28 INFO : 25) 4FGL J1249.8+3707:['2MASS J12494675+3707474']
2022-06-23 14:30:28 INFO : 26) 4FGL J1257.2+3646:['RX J1257.3+3647']
[9]:
fermi.print_target()
2022-06-23 14:30:28 INFO : Name : 4FGL J1221.3+3010
Associations : ['4FGL J1221.3+3010', 'PG 1218+304', '1ES 1218+304']
RA/DEC : 185.345/ 30.168
GLON/GLAT : 186.417/ 82.741
TS : 45.02
Npred : 5.61
Flux : 5.145e-08 +/- 3.21e-08
EnergyFlux : 0.0009845 +/- 0.000824
SpatialModel : PointSource
SpectrumType : PowerLaw
Spectral Parameters
b'Prefactor' : 1.362e-12 +/- 7.049e-13
b'Index' : -1.197 +/- 0.2804
b'Scale' : 4442 +/- nan
Perform a fit
[10]:
fermi.fit()
2022-06-23 14:31:32 INFO : Fit successfully (3).
WARNING: Format %s cannot be mapped to the accepted TDISPn keyword values. Format will not be moved into TDISPn keyword. [astropy.io.fits.column]
2022-06-23 14:31:33 WARNING : Format %s cannot be mapped to the accepted TDISPn keyword values. Format will not be moved into TDISPn keyword.
WARNING: Format %f cannot be mapped to the accepted TDISPn keyword values. Format will not be moved into TDISPn keyword. [astropy.io.fits.column]
2022-06-23 14:31:33 WARNING : Format %f cannot be mapped to the accepted TDISPn keyword values. Format will not be moved into TDISPn keyword.
WARNING: Format %s cannot be mapped to the accepted TDISPn keyword values. Format will not be moved into TDISPn keyword. [astropy.io.fits.column]
2022-06-23 14:31:33 WARNING : Format %s cannot be mapped to the accepted TDISPn keyword values. Format will not be moved into TDISPn keyword.
2022-06-23 14:31:44 INFO : The state is saved as 'simple'. You can load the state by vtspy.VeritasAnalysis('simple').
[11]:
fermi.print_model()
2022-06-23 14:31:44 ERROR GTAnalysis.print_model():
sourcename offset norm eflux index ts npred free
--------------------------------------------------------------------------------
4FGL J1221.3+3010 0.000 12.749 0.00104 1.16 48.83 5.2 *
4FGL J1217.9+3007 0.753 0.742 5.02e-05 2.69 62.52 10.7 *
4FGL J1225.9+2951 1.038 2.446 1.47e-05 2.35 19.17 1.3 *
4FGL J1221.5+2814 1.930 0.387 2.87e-05 2.16 2.90 3.6 *
4FGL J1231.7+2847 2.641 0.405 0.000519 0.77 71.49 1.0 *
4FGL J1208.1+3017 2.871 0.000 5.83e-11 1.79 56.00 0.0 *
4FGL J1220.1+3432 4.378 1.647 3.92e-06 2.07 nan 0.4
4FGL J1205.8+3321 4.589 0.684 1.45e-06 2.68 nan 0.3
4FGL J1159.5+2914 4.832 0.061 5.95e-06 2.42 0.12 0.8
4FGL J1215.1+3513 5.219 0.575 1.41e-06 2.64 nan 0.3
4FGL J1230.2+2517 5.249 0.519 1.87e-05 2.16 1.86 1.9
4FGL J1224.4+2436 5.595 2.470 1.25e-05 1.89 nan 0.6
4FGL J1212.2+2442 5.821 0.515 1.44e-06 2.11 nan 0.1
4FGL J1241.5+3439 6.187 1.080 1.21e-06 1.92 nan 0.1
4FGL J1250.8+3117 6.438 0.751 1.7e-06 2.16 nan 0.1
4FGL J1152.1+2837 6.554 0.562 1.18e-06 1.88 nan 0.0
4FGL J1219.0+3653 6.738 0.850 1.15e-06 2.23 nan 0.0
4FGL J1152.8+3308 6.758 0.386 1.79e-06 2.94 nan 0.2
4FGL J1253.8+2929 7.077 0.601 1.07e-06 1.83 nan 0.0
4FGL J1230.9+3711 7.296 1.045 1.01e-06 2.45 nan 0.0
4FGL J1212.0+2242 7.744 2.844 1.41e-06 2.04 nan 0.0
4FGL J1243.2+3627 7.771 0.754 1.88e-05 1.74 nan 0.2
4FGL J1148.5+2629 8.096 0.444 1.89e-06 2.94 nan 0.1
4FGL J1149.4+2441 8.946 0.715 1.4e-06 1.92 nan 0.0
4FGL J1150.4+2418 9.039 1.430 1.1e-05 2.21 nan 0.2
4FGL J1249.8+3707 9.135 2.558 3.88e-06 1.77 nan 0.0
4FGL J1257.2+3646 9.968 1.868 4.44e-06 2.05 nan 0.0
isodiff --- 1.458 0.0738 2.24 1.44 45.2 *
galdiff --- 0.100 0.0266 0.00 -0.03 2.2 *
Remove weak sources except for the target and diffuse bkgs.
[12]:
fermi.remove_weak_srcs(ts_cut=0.1)
fermi.fit()
2022-06-23 14:31:44 INFO : 19 sources are deleted.
Drm_Cache::update Measured counts < 0 4FGL J1225.9+2951 27 -8.42318e-12 8.15458e-11
5.78367e-06 3.94045e-05 0.000214079 0.000936295 0.00340753 0.0102318 0.0256222 0.0540636 0.096388 0.143602 0.177852 0.184347 0.160781 0.11847 0.0748312 0.0407656 0.0188055 0.00734414 0.0024502 0.000700138 0.000172128 3.56867e-05 6.19562e-06 9.09766e-07 1.13293e-07 1.19548e-08 1.07197e-09 8.15458e-11
2022-06-23 14:31:56 INFO : Fit successfully (3).
WARNING: Format %s cannot be mapped to the accepted TDISPn keyword values. Format will not be moved into TDISPn keyword. [astropy.io.fits.column]
2022-06-23 14:31:56 WARNING : Format %s cannot be mapped to the accepted TDISPn keyword values. Format will not be moved into TDISPn keyword.
WARNING: Format %f cannot be mapped to the accepted TDISPn keyword values. Format will not be moved into TDISPn keyword. [astropy.io.fits.column]
2022-06-23 14:31:56 WARNING : Format %f cannot be mapped to the accepted TDISPn keyword values. Format will not be moved into TDISPn keyword.
WARNING: Format %s cannot be mapped to the accepted TDISPn keyword values. Format will not be moved into TDISPn keyword. [astropy.io.fits.column]
2022-06-23 14:31:56 WARNING : Format %s cannot be mapped to the accepted TDISPn keyword values. Format will not be moved into TDISPn keyword.
2022-06-23 14:32:06 INFO : The state is saved as 'simple'. You can load the state by vtspy.VeritasAnalysis('simple').
[13]:
fermi.print_model()
2022-06-23 14:32:06 ERROR GTAnalysis.print_model():
sourcename offset norm eflux index ts npred free
--------------------------------------------------------------------------------
4FGL J1221.3+3010 0.000 12.737 0.00104 1.16 46.74 5.2 *
4FGL J1217.9+3007 0.753 0.766 5.01e-05 2.74 62.58 10.7 *
4FGL J1225.9+2951 1.038 2.045 2.3e-05 1.73 21.07 1.1 *
4FGL J1221.5+2814 1.930 0.397 2.95e-05 2.16 2.96 3.7 *
4FGL J1231.7+2847 2.641 0.402 0.000524 0.77 71.40 1.0 *
4FGL J1208.1+3017 2.871 0.000 1.38e-09 1.79 56.00 0.0 *
4FGL J1159.5+2914 4.832 0.061 5.95e-06 2.42 0.12 0.8
4FGL J1230.2+2517 5.249 0.519 1.87e-05 2.16 1.86 1.9
isodiff --- 1.526 0.0772 2.24 1.63 47.4 *
galdiff --- 0.100 0.0266 0.00 -0.04 2.2 *
[14]:
fermi.print_params()
2022-06-23 14:32:06 ERROR GTAnalysis.print_params():
idx parname value error min max scale free
--------------------------------------------------------------------------------
4FGL J1208.1+3017
4 Prefactor 0.000484 1.79 1e-05 1e+03 1e-14 *
5 Index 1.79 2.42e+03 0 5 -1 *
6 Scale 5.65e+03 0 5.65e+03 5.65e+03 1
4FGL J1217.9+3007
7 norm 0.766 0.463 1e-05 1e+03 1e-11 *
8 alpha 2.59 0.477 -5 5 1 *
9 beta 0.0655 0.245 -2 2 1 *
10 Eb 1.07e+03 0 1.07e+03 1.07e+03 1
4FGL J1221.3+3010
11 Prefactor 12.7 6.02 1e-05 1e+03 1e-13 *
12 Index 1.16 0.245 0 5 -1 *
13 Scale 4.44e+03 0 4.44e+03 4.44e+03 1
4FGL J1221.5+2814
14 Prefactor 0.397 0.345 1e-05 1e+03 1e-11 *
15 Index 2.16 0 0 5 -1
16 Scale 1.06e+03 0 1.06e+03 1.06e+03 1
4FGL J1225.9+2951
17 norm 2.05 2.57 1e-05 1e+03 1e-12 *
18 alpha -1.44 1.6 -5 5 1 *
19 beta 2 0.0863 -2 2 1 *
20 Eb 1.43e+03 0 1.43e+03 1.43e+03 1
4FGL J1231.7+2847
25 Prefactor 0.402 0.521 1e-05 1e+03 1e-12 *
26 Index 0.768 0.386 0 5 -1 *
27 Scale 1.58e+03 0 1.58e+03 1.58e+03 1
galdiff
28 Prefactor 0.1 0.000513 0.1 10 1 *
29 Index 0 0 -1 1 -1
30 Scale 1e+03 0 1e+03 1e+03 1
isodiff
31 Normalization 1.53 0.246 0.001 1e+03 1 *
Check TS distribution
[15]:
fermi.analysis(jobs=["ts"])
2022-06-23 14:32:06 INFO : Generating a TS map...
2022-06-23 14:32:45 WARNING GTAnalysis.tsmap(): Saving TS maps in .npy files is disabled b/c of incompatibilities in python3, remove the maps from the /Users/dtak/Research/FermiAnalysis/1ES1218+304/./fermi/ts_pointsource_powerlaw_2.00_tsmap.npy
2022-06-23 14:32:45 INFO : Generating the TS map is completed.
WARNING: Format %s cannot be mapped to the accepted TDISPn keyword values. Format will not be moved into TDISPn keyword. [astropy.io.fits.column]
2022-06-23 14:32:45 WARNING : Format %s cannot be mapped to the accepted TDISPn keyword values. Format will not be moved into TDISPn keyword.
WARNING: Format %f cannot be mapped to the accepted TDISPn keyword values. Format will not be moved into TDISPn keyword. [astropy.io.fits.column]
2022-06-23 14:32:45 WARNING : Format %f cannot be mapped to the accepted TDISPn keyword values. Format will not be moved into TDISPn keyword.
WARNING: Format %s cannot be mapped to the accepted TDISPn keyword values. Format will not be moved into TDISPn keyword. [astropy.io.fits.column]
2022-06-23 14:32:46 WARNING : Format %s cannot be mapped to the accepted TDISPn keyword values. Format will not be moved into TDISPn keyword.
2022-06-23 14:32:56 INFO : The state is saved as 'analyzed'. You can load the state by vtspy.VeritasAnalysis('analyzed').
[16]:

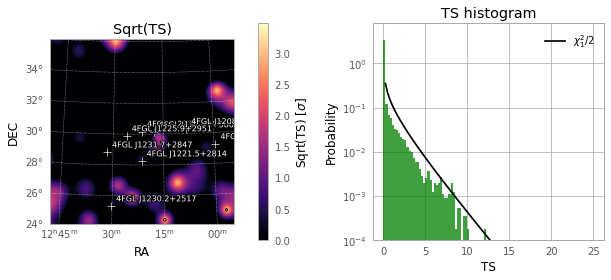

fermi.plot(["sqrt_ts", "ts_hist"])
2022-06-23 14:32:56 INFO : Loading the output file...
Check resid distribution
[17]:
fermi.analysis(jobs=["resid"])
2022-06-23 14:32:57 INFO : Generating a residual distribution...
2022-06-23 14:33:06 WARNING GTAnalysis.residmap(): Saving maps in .npy files is disabled b/c of incompatibilities in python3, remove the maps from the /Users/dtak/Research/FermiAnalysis/1ES1218+304/./fermi/resid_pointsource_powerlaw_2.00_residmap.npy
2022-06-23 14:33:06 INFO : Generating the residual distribution is completed.
WARNING: Format %s cannot be mapped to the accepted TDISPn keyword values. Format will not be moved into TDISPn keyword. [astropy.io.fits.column]
2022-06-23 14:33:06 WARNING : Format %s cannot be mapped to the accepted TDISPn keyword values. Format will not be moved into TDISPn keyword.
WARNING: Format %f cannot be mapped to the accepted TDISPn keyword values. Format will not be moved into TDISPn keyword. [astropy.io.fits.column]
2022-06-23 14:33:06 WARNING : Format %f cannot be mapped to the accepted TDISPn keyword values. Format will not be moved into TDISPn keyword.
WARNING: Format %s cannot be mapped to the accepted TDISPn keyword values. Format will not be moved into TDISPn keyword. [astropy.io.fits.column]
2022-06-23 14:33:07 WARNING : Format %s cannot be mapped to the accepted TDISPn keyword values. Format will not be moved into TDISPn keyword.
2022-06-23 14:33:17 INFO : The state is saved as 'analyzed'. You can load the state by vtspy.VeritasAnalysis('analyzed').
[18]:

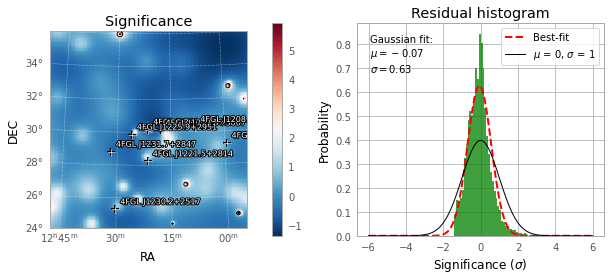

fermi.plot(["sigma", "resid"])
2022-06-23 14:33:17 INFO : Loading the output file...
Calculate SED
[19]:
fermi.analysis(jobs=["sed"])
2022-06-23 14:33:17 INFO : Generating a SED...
2022-06-23 14:33:25 INFO : Generating the SED is completed.
WARNING: Format %s cannot be mapped to the accepted TDISPn keyword values. Format will not be moved into TDISPn keyword. [astropy.io.fits.column]
2022-06-23 14:33:25 WARNING : Format %s cannot be mapped to the accepted TDISPn keyword values. Format will not be moved into TDISPn keyword.
WARNING: Format %f cannot be mapped to the accepted TDISPn keyword values. Format will not be moved into TDISPn keyword. [astropy.io.fits.column]
2022-06-23 14:33:25 WARNING : Format %f cannot be mapped to the accepted TDISPn keyword values. Format will not be moved into TDISPn keyword.
WARNING: Format %s cannot be mapped to the accepted TDISPn keyword values. Format will not be moved into TDISPn keyword. [astropy.io.fits.column]
2022-06-23 14:33:25 WARNING : Format %s cannot be mapped to the accepted TDISPn keyword values. Format will not be moved into TDISPn keyword.
2022-06-23 14:33:35 INFO : The state is saved as 'analyzed'. You can load the state by vtspy.VeritasAnalysis('analyzed').
[20]:

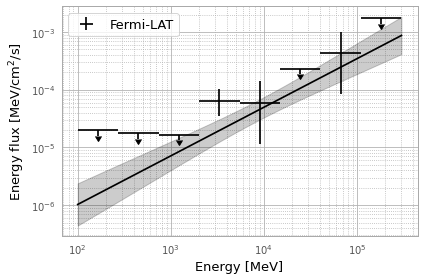

fermi.plot("sed")
2022-06-23 14:33:35 INFO : Loading the output file...
Step 4. Construct dataset for the joint-fit analysis
[21]:
fermi.construct_dataset()
2022-06-23 14:33:36 INFO : Loading the Fermi-LAT events...
2022-06-23 14:33:36 INFO : Loading the Fermi-LAT IRFs...
WARNING: FITSFixedWarning: RADECSYS= 'FK5 '
the RADECSYS keyword is deprecated, use RADESYSa. [astropy.wcs.wcs]
2022-06-23 14:33:36 WARNING : FITSFixedWarning: RADECSYS= 'FK5 '
the RADECSYS keyword is deprecated, use RADESYSa.
WARNING: FITSFixedWarning: 'datfix' made the change 'Set DATEREF to '2001-01-01T00:01:04.184' from MJDREF.
Set MJD-OBS to 58849.000000 from DATE-OBS.
Set MJD-END to 58850.000000 from DATE-END'. [astropy.wcs.wcs]
2022-06-23 14:33:36 WARNING : FITSFixedWarning: 'datfix' made the change 'Set DATEREF to '2001-01-01T00:01:04.184' from MJDREF.
Set MJD-OBS to 58849.000000 from DATE-OBS.
Set MJD-END to 58850.000000 from DATE-END'.
2022-06-23 14:33:36 INFO : Loading the Fermi-LAT models...
2022-06-23 14:33:38 INFO : Ready to perform a gammapy analysis.
Peek events and irfs
[22]:

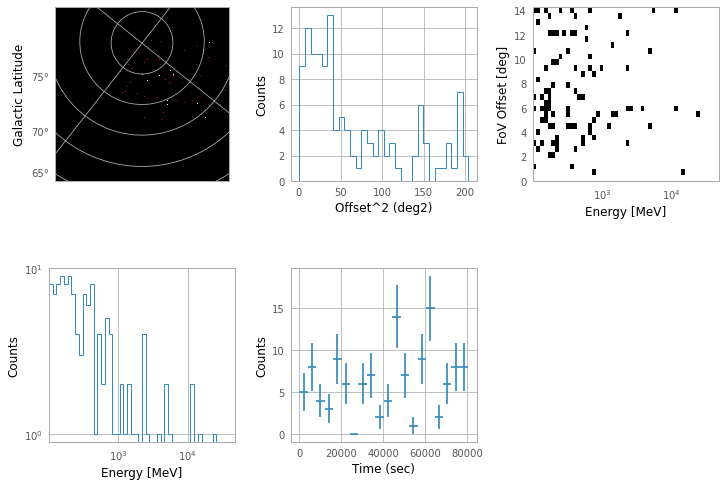

fermi.peek_events()
[23]:

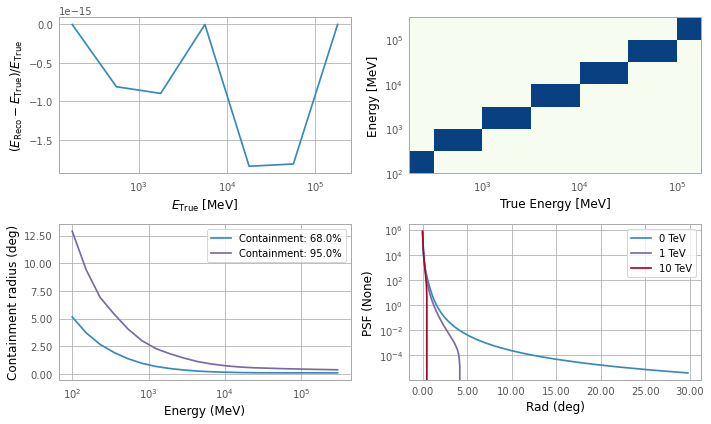

fermi.peek_irfs()
Bonus. Fit the Fermi-LAT dataset with gammapy
Note that this will take longer time
[24]:
from gammapy.modeling import Fit
[25]:
gfit = Fit()
gfit.run(fermi.datasets)
[25]:
OptimizeResult
backend : minuit
method : migrad
success : True
message : Optimization failed.
nfev : 2467
total stat : 1015.91
CovarianceResult
backend : minuit
method : hesse
success : True
message : Hesse terminated successfully.
[26]:

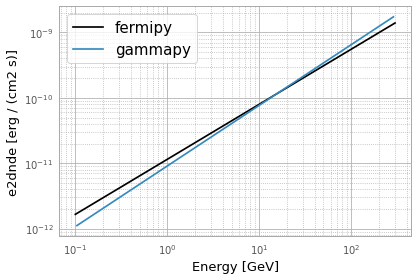

fermi.plot("sed", erg=True, units="GeV", show_flux_points=False, show_band=False, label="fermipy")
gamma_result = fermi.datasets.models[fermi.target_name].spectral_model
gamma_result.plot([100*u.MeV, 300*u.GeV], sed_type="e2dnde", label="gammapy")
plt.legend(fontsize=15)
2022-06-23 14:41:25 INFO : Loading the output file...
[26]:
<matplotlib.legend.Legend at 0x16cc3eac0>
[ ]:
[ ]:
