JOINT-FIT ANALYSIS
[1]:
from vtspy import *
WARNING: version mismatch between CFITSIO header (v4.000999999999999) and linked library (v4.01).
WARNING: version mismatch between CFITSIO header (v4.000999999999999) and linked library (v4.01).
WARNING: version mismatch between CFITSIO header (v4.000999999999999) and linked library (v4.01).
Step 1. Load Fermi-LAT and VERITAS datasets
[2]:
joint = JointAnalysis(veritas="analyzed", fermi="analyzed")
2022-06-24 11:25:23 INFO : Initialize the joint-fit analysis...
2022-06-24 11:25:23 INFO : Initialize the VERITAS analysis.
2022-06-24 11:25:23 INFO : The setup is found [state_file = analyzed]. Read the state.
2022-06-24 11:25:23 INFO : Completed (VERITAS initialization).
2022-06-24 11:25:23 INFO : Initialize the Fermi-LAT analysis.
2022-06-24 11:25:28 INFO : The setup and configuration is found [state_file = analyzed]. Loading the configuration...
2022-06-24 11:25:38 INFO : The target, 4FGL J1221.3+3010, is associated with 2 source(s).
2022-06-24 11:25:38 INFO : Completed (Fermi-LAT initialization).
2022-06-24 11:25:38 INFO : Loading the Fermi-LAT events...
2022-06-24 11:25:39 INFO : Loading the Fermi-LAT IRFs...
WARNING: FITSFixedWarning: RADECSYS= 'FK5 '
the RADECSYS keyword is deprecated, use RADESYSa. [astropy.wcs.wcs]
2022-06-24 11:25:39 WARNING : FITSFixedWarning: RADECSYS= 'FK5 '
the RADECSYS keyword is deprecated, use RADESYSa.
WARNING: FITSFixedWarning: 'datfix' made the change 'Set DATEREF to '2001-01-01T00:01:04.184' from MJDREF.
Set MJD-OBS to 58849.000000 from DATE-OBS.
Set MJD-END to 58850.000000 from DATE-END'. [astropy.wcs.wcs]
2022-06-24 11:25:39 WARNING : FITSFixedWarning: 'datfix' made the change 'Set DATEREF to '2001-01-01T00:01:04.184' from MJDREF.
Set MJD-OBS to 58849.000000 from DATE-OBS.
Set MJD-END to 58850.000000 from DATE-END'.
2022-06-24 11:25:39 INFO : Loading the Fermi-LAT models...
2022-06-24 11:25:41 INFO : Ready to perform a gammapy analysis.
2022-06-24 11:25:41 INFO : Constructing a joint datasets
2022-06-24 11:25:41 INFO : Completed.
Check datasets and models
[3]:
joint.print_models()
[3]:
Table length=5
| model | type | name | value | unit | error | min | max | frozen | is_norm | link |
|---|---|---|---|---|---|---|---|---|---|---|
| str11 | str8 | str9 | float64 | str14 | float64 | float64 | float64 | bool | bool | str1 |
| 1ES1218+304 | spectral | index | 3.1484e+00 | 1.313e-01 | nan | nan | False | False | ||
| 1ES1218+304 | spectral | amplitude | 4.2436e-12 | cm-2 s-1 TeV-1 | 6.788e-13 | nan | nan | False | True | |
| 1ES1218+304 | spectral | reference | 1.0000e+00 | TeV | 0.000e+00 | nan | nan | True | False | |
| 1ES1218+304 | spatial | lon_0 | 1.8534e+02 | deg | 0.000e+00 | nan | nan | True | False | |
| 1ES1218+304 | spatial | lat_0 | 3.0168e+01 | deg | 0.000e+00 | -9.000e+01 | 9.000e+01 | True | False |

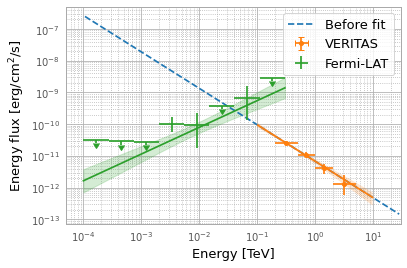

Check a global SED before the fit
[4]:
joint.plot_sed()

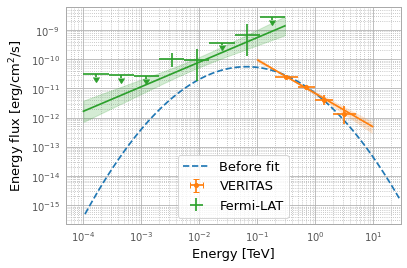

Change a spectral model
[5]:
joint.change_model("logparabola", optimize=True, method="inst")
joint.plot("sed")
2022-06-24 11:25:44 INFO : The spectral model for the target is chaged:
2022-06-24 11:25:44 INFO : PowerLawSpectralModel->LogParabolaSpectralModel
[6]:
joint.print_models()
[6]:
Table length=6
| model | type | name | value | unit | error | min | max | frozen | is_norm | link |
|---|---|---|---|---|---|---|---|---|---|---|
| str11 | str8 | str9 | float64 | str14 | float64 | float64 | float64 | bool | bool | str1 |
| 1ES1218+304 | spectral | amplitude | 4.2617e-12 | cm-2 s-1 TeV-1 | 7.615e-13 | nan | nan | False | True | |
| 1ES1218+304 | spectral | reference | 1.0000e+00 | TeV | 0.000e+00 | nan | nan | True | False | |
| 1ES1218+304 | spectral | alpha | 3.5385e+00 | 3.332e-01 | nan | nan | False | False | ||
| 1ES1218+304 | spectral | beta | 2.8214e-01 | 1.984e-01 | nan | nan | False | False | ||
| 1ES1218+304 | spatial | lon_0 | 1.8534e+02 | deg | 0.000e+00 | nan | nan | True | False | |
| 1ES1218+304 | spatial | lat_0 | 3.0168e+01 | deg | 0.000e+00 | -9.000e+01 | 9.000e+01 | True | False |
Step 2. Run a joint-fit analysis
[7]:
joint.fit()
2022-06-24 11:25:44 INFO : Start fitting...
2022-06-24 11:35:04 INFO : Fit successfully.
Check a global SED after the fit
[8]:
joint.plot("sed", show_flux_points=True)
[9]:
joint.print_models()
[9]:
Table length=6
| model | type | name | value | unit | error | min | max | frozen | is_norm | link |
|---|---|---|---|---|---|---|---|---|---|---|
| str11 | str8 | str9 | float64 | str14 | float64 | float64 | float64 | bool | bool | str1 |
| 1ES1218+304 | spectral | amplitude | 4.0987e-12 | cm-2 s-1 TeV-1 | 7.240e-13 | nan | nan | False | True | |
| 1ES1218+304 | spectral | reference | 1.0000e+00 | TeV | 0.000e+00 | nan | nan | True | False | |
| 1ES1218+304 | spectral | alpha | 3.4837e+00 | 1.847e-01 | nan | nan | False | False | ||
| 1ES1218+304 | spectral | beta | 2.0962e-01 | 3.391e-02 | nan | nan | False | False | ||
| 1ES1218+304 | spatial | lon_0 | 1.8534e+02 | deg | 0.000e+00 | nan | nan | True | False | |
| 1ES1218+304 | spatial | lat_0 | 3.0168e+01 | deg | 0.000e+00 | -9.000e+01 | 9.000e+01 | True | False |
Bonus. Test the ‘agnpy’ model
[10]:
from vtspy.model import default_model
[11]:
agnpy = default_model("agnpy", redshift=0.182)
Check initial parameters
[12]:
agnpy.parameters.to_table()
[12]:
Table length=11
| type | name | value | unit | error | min | max | frozen | is_norm | link |
|---|---|---|---|---|---|---|---|---|---|
| str8 | str15 | float64 | str4 | int64 | float64 | float64 | bool | bool | str1 |
| spectral | norm_e | 5.0000e-06 | cm-3 | 0.000e+00 | 1.000e-20 | 1.000e+00 | False | True | |
| spectral | p1 | 0.0000e+00 | 0.000e+00 | -2.000e+00 | 5.000e+00 | False | False | ||
| spectral | p2 | 3.0000e+00 | 0.000e+00 | -2.000e+00 | 5.000e+00 | False | False | ||
| spectral | log10_gamma_b | 4.0000e+00 | 0.000e+00 | 1.000e+00 | 7.000e+00 | False | False | ||
| spectral | log10_gamma_min | 2.6990e+00 | 0.000e+00 | 0.000e+00 | 4.000e+00 | True | False | ||
| spectral | log10_gamma_max | 6.0000e+00 | 0.000e+00 | 4.000e+00 | 8.000e+00 | True | False | ||
| spectral | delta_D | 1.0000e+01 | 0.000e+00 | 0.000e+00 | 6.000e+01 | False | False | ||
| spectral | log10_B | 1.0000e+00 | 0.000e+00 | -4.000e+00 | 2.000e+00 | False | False | ||
| spectral | t_var | 1.0000e+00 | d | 0.000e+00 | 1.000e+01 | 3.142e+07 | True | False | |
| spectral | z | 1.8200e-01 | 0.000e+00 | 1.000e-02 | 1.000e+00 | True | False | ||
| spectral | d_L | 2.8128e+27 | cm | 0.000e+00 | 1.000e+25 | 1.000e+33 | True | False |
[13]:

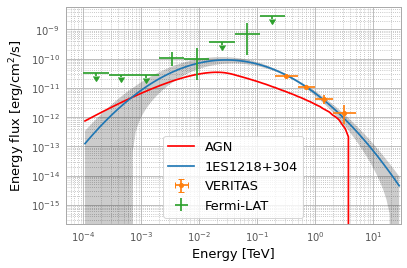

agnpy.plot([100 * u.MeV, 30 * u.TeV], sed_type="e2dnde", label="AGN", color="r")
joint.plot("sed", show_flux_points=True)

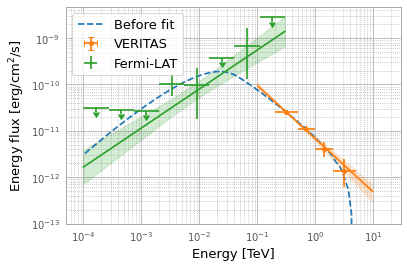

Change a spectral model
[14]:
joint.change_model(agnpy, optimize=True, method="flux")
joint.plot("sed", show_flux_points=True)
2022-06-24 11:35:06 INFO : A model, agnpy(SYN+SSC), is imported
2022-06-24 11:35:38 INFO : The spectral model for the target is chaged:
2022-06-24 11:35:38 INFO : LogParabolaSpectralModel->agnpy(SYN+SSC)
[15]:
joint.print_models()
[15]:
Table length=13
| model | type | name | value | unit | error | min | max | frozen | is_norm | link |
|---|---|---|---|---|---|---|---|---|---|---|
| str11 | str8 | str15 | float64 | str14 | float64 | float64 | float64 | bool | bool | str1 |
| 1ES1218+304 | spectral | norm_e | 5.7602e-06 | cm-3 | 6.219e-07 | 1.000e-20 | 1.000e+00 | False | True | |
| 1ES1218+304 | spectral | p1 | 2.2308e-01 | 5.860e-01 | -2.000e+00 | 5.000e+00 | False | False | ||
| 1ES1218+304 | spectral | p2 | 3.2369e+00 | 7.854e-02 | -2.000e+00 | 5.000e+00 | False | False | ||
| 1ES1218+304 | spectral | log10_gamma_b | 4.0559e+00 | 2.065e-02 | 1.000e+00 | 7.000e+00 | False | False | ||
| 1ES1218+304 | spectral | log10_gamma_min | 2.6990e+00 | 0.000e+00 | 0.000e+00 | 4.000e+00 | True | False | ||
| 1ES1218+304 | spectral | log10_gamma_max | 6.0000e+00 | 0.000e+00 | 4.000e+00 | 8.000e+00 | True | False | ||
| 1ES1218+304 | spectral | delta_D | 1.0295e+01 | 1.302e+00 | 0.000e+00 | 6.000e+01 | False | False | ||
| 1ES1218+304 | spectral | log10_B | 1.2411e+00 | 7.700e-02 | -4.000e+00 | 2.000e+00 | False | False | ||
| 1ES1218+304 | spectral | t_var | 1.0000e+00 | d | 0.000e+00 | 1.000e+01 | 3.142e+07 | True | False | |
| 1ES1218+304 | spectral | z | 1.8200e-01 | 0.000e+00 | 1.000e-02 | 1.000e+00 | True | False | ||
| 1ES1218+304 | spectral | d_L | 2.8128e+27 | cm | 0.000e+00 | 1.000e+25 | 1.000e+33 | True | False | |
| 1ES1218+304 | spatial | lon_0 | 1.8534e+02 | deg | 0.000e+00 | nan | nan | True | False | |
| 1ES1218+304 | spatial | lat_0 | 3.0168e+01 | deg | 0.000e+00 | -9.000e+01 | 9.000e+01 | True | False |
Fit the data
[16]:
joint.fit()
2022-06-24 12:03:18 INFO : Start fitting...
2022-06-24 12:56:19 INFO : Fit successfully.
[19]:

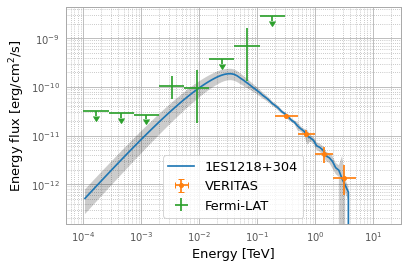

joint.plot("sed", show_flux_points=True)
[20]:
joint.print_models()
[20]:
Table length=13
| model | type | name | value | unit | error | min | max | frozen | is_norm | link |
|---|---|---|---|---|---|---|---|---|---|---|
| str11 | str8 | str15 | float64 | str14 | float64 | float64 | float64 | bool | bool | str1 |
| 1ES1218+304 | spectral | norm_e | 4.8566e-06 | cm-3 | 5.329e-06 | 1.000e-20 | 1.000e+00 | False | True | |
| 1ES1218+304 | spectral | p1 | -1.9420e+00 | 1.581e+00 | -2.000e+00 | 5.000e+00 | False | False | ||
| 1ES1218+304 | spectral | p2 | 3.1134e+00 | 1.793e-01 | -2.000e+00 | 5.000e+00 | False | False | ||
| 1ES1218+304 | spectral | log10_gamma_b | 4.0534e+00 | 5.281e-02 | 1.000e+00 | 7.000e+00 | False | False | ||
| 1ES1218+304 | spectral | log10_gamma_min | 2.6990e+00 | 0.000e+00 | 0.000e+00 | 4.000e+00 | True | False | ||
| 1ES1218+304 | spectral | log10_gamma_max | 6.0000e+00 | 0.000e+00 | 4.000e+00 | 8.000e+00 | True | False | ||
| 1ES1218+304 | spectral | delta_D | 1.0111e+01 | 2.442e-01 | 0.000e+00 | 6.000e+01 | False | False | ||
| 1ES1218+304 | spectral | log10_B | 1.5034e+00 | 7.587e-01 | -4.000e+00 | 2.000e+00 | False | False | ||
| 1ES1218+304 | spectral | t_var | 1.0000e+00 | d | 0.000e+00 | 1.000e+01 | 3.142e+07 | True | False | |
| 1ES1218+304 | spectral | z | 1.8200e-01 | 0.000e+00 | 1.000e-02 | 1.000e+00 | True | False | ||
| 1ES1218+304 | spectral | d_L | 2.8128e+27 | cm | 0.000e+00 | 1.000e+25 | 1.000e+33 | True | False | |
| 1ES1218+304 | spatial | lon_0 | 1.8534e+02 | deg | 0.000e+00 | nan | nan | True | False | |
| 1ES1218+304 | spatial | lat_0 | 3.0168e+01 | deg | 0.000e+00 | -9.000e+01 | 9.000e+01 | True | False |
